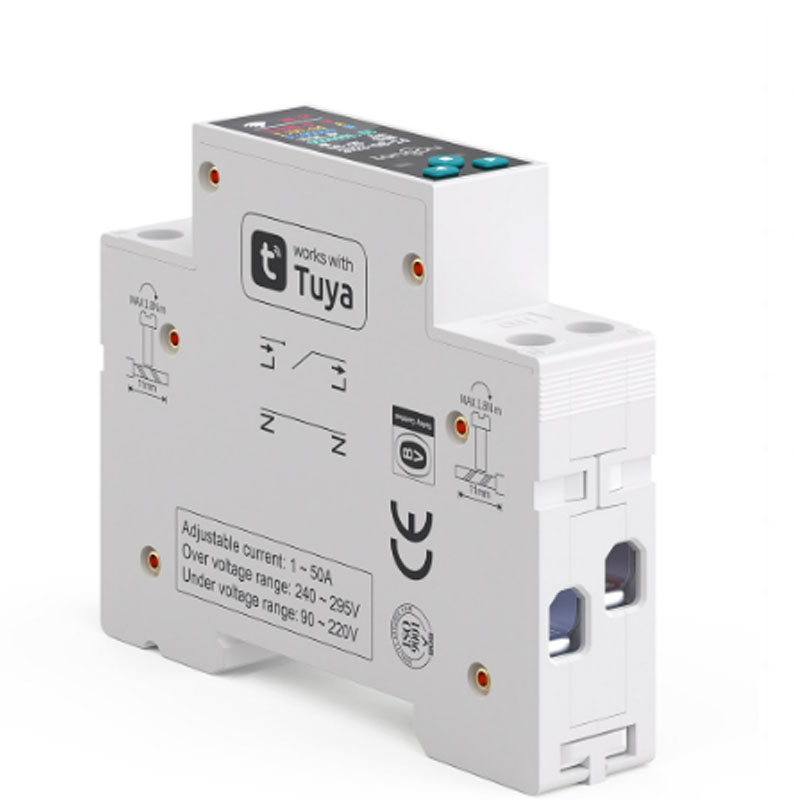

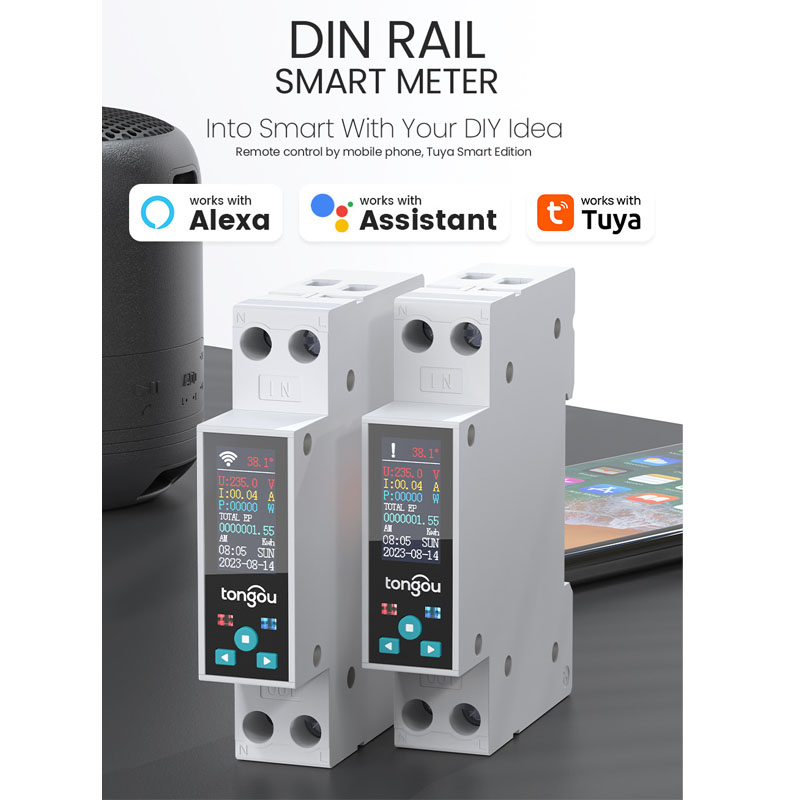

1P+N Smart Living Electricity Meter. Features a backlit color LCD display. 1P+N/ 1~50 A/ 230 VAC, single-phase. Operable with the Tuya/Smart Life app for remote device switching.

Feature Description:

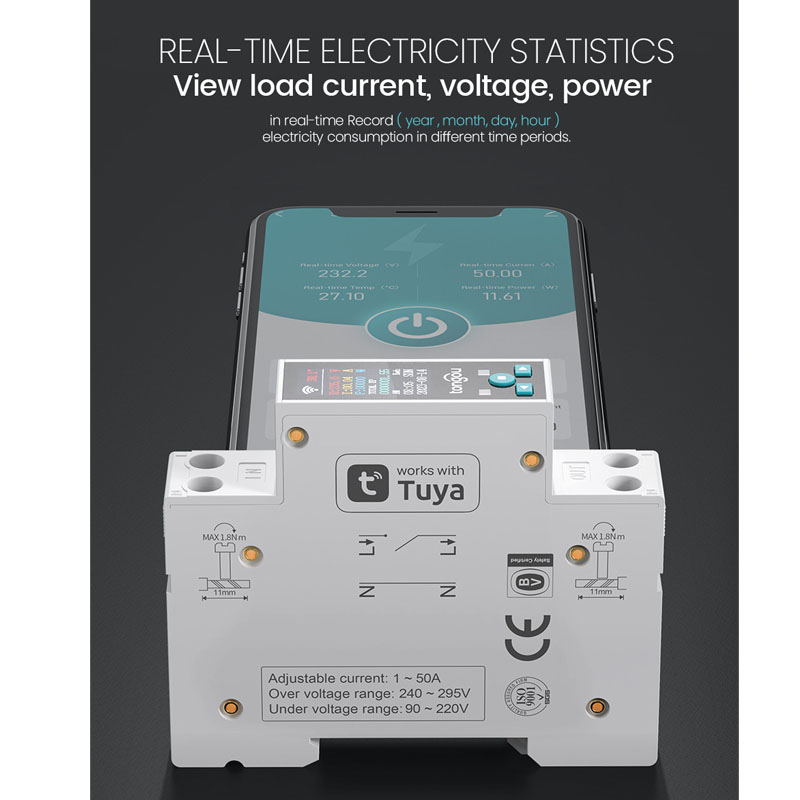

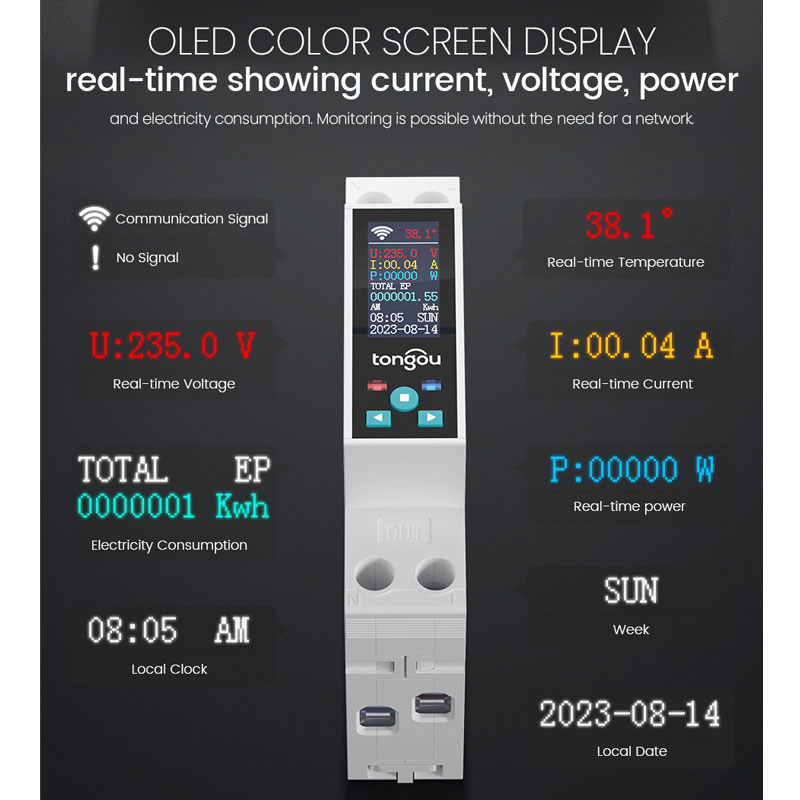

Real-Time Display: Shows voltage, current, temperature, power, total electricity consumption, daily usage, local date, and more.

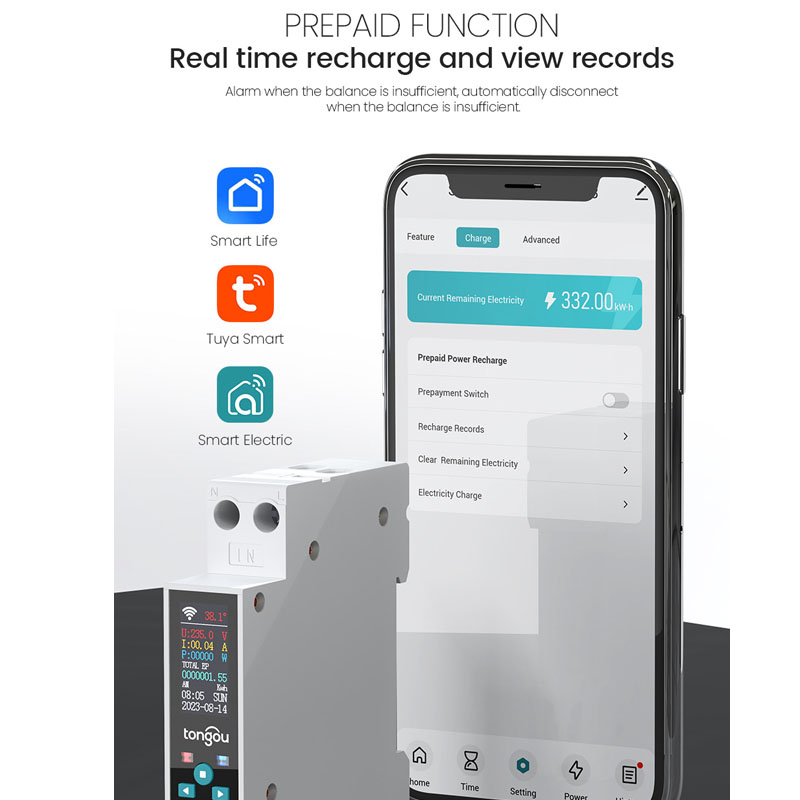

Energy Consumption Meter: Measures and monitors energy consumption by hour, day, month, and year. Resets consumption from the start. Program using just 3 buttons. A prepaid feature is also available in the meter is smart rail. Export electricity consumption data to email in xlsx format.

Turn Off Screen Backlight: The smart switch has a colorful 8-in-1 display with 5-level brightness adjustment, which can even be turned off. The screen orientation can also be changed via the app.

Alarm Confirmation: The digital smart electricity meter serves as a protection device for over/under voltage, overcurrent, overload, overpower, overheating, and balance alarms. It notifies you via alerts or directly triggers when thresholds are met.

Voice Control: Compatible with Alexa/Google Assistant, allowing wireless device on/off control. The smart meter rail can be used as a smart timer with 3 modes: (1) Scheduled (e.g., turn on at 5:30 AM, off at 6:15 AM), (2) Sunrise/Sunset, (3) Cycle time, such as for fountains or irrigation (e.g., on for 30 minutes and off for 1 hour between 7:30 and 10:00).

Auto Reset: Auto reset is only possible in cases of over/under voltage and overpower. Note that if you want the relay to connect power and restore normal operation upon sudden power loss, program the relay status to ON via the app.

Parameters:

- Maximum Remote Current: 50A

- Operating Voltage: AC90-250V, 50/60Hz

- Wireless Type: Wi-Fi 2.4GHz/Zigbee 3.0

- Supported Systems: Android/iOS

- Working Environment: IP20

- Accuracy: Voltage, current, power, and active energy: Class 1 - Standby Power: 2W

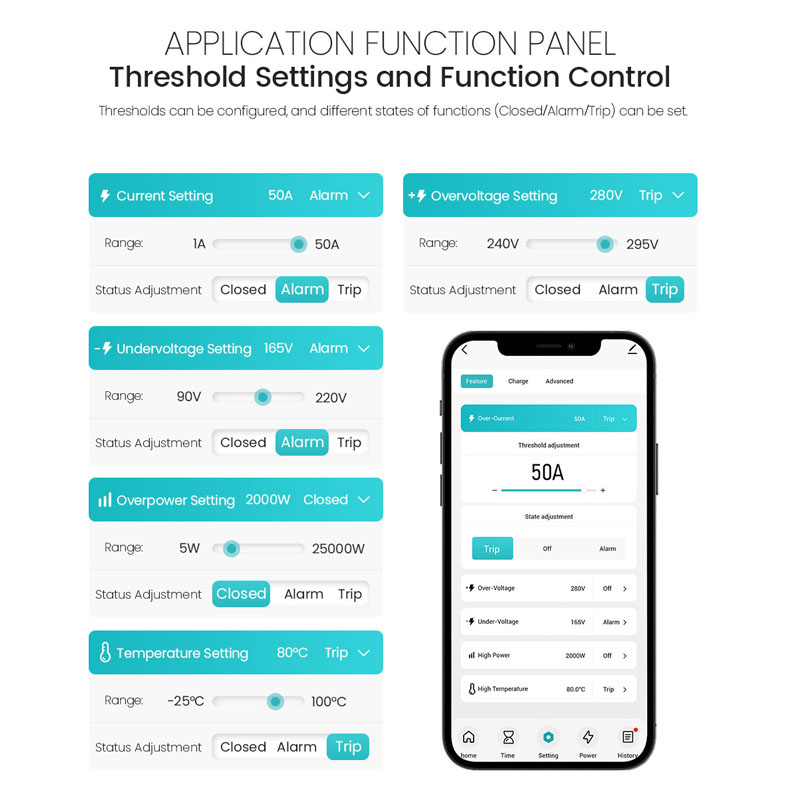

Adjustable Parameters via Product Interface:

- Power Grid Frequency: Real-time update

- Total Power Factor: Real-time update

- Screen Brightness: Level 1-5

- Active Reporting Settings: 60S-600S

- Current Setting: 1-50A

- Overvoltage Setting: 100V-280V

- Undervoltage Setting: 100V-280V

- Overpower Setting: 5W-12500W

- Temperature Setting: -25°C-80°C

- Balance Alert: 10-500 degrees

-Clear Elctricity Data
